Basic functions: Linear functions
A linear relationship on the basis of two data points
You have already seen how the function definition of a linear function can be calculated if you are already known to the slope and a single point on the graph. In practice you encounter the following problem more frequently:
Given two data points \((t_0,y_0)\) and \((t_1,y_1)\) with \(t_0\neq t_1\), what is the function definition \(y(t)=a\,t+b\) for which the graph goes through these two points?
The general solution method is as follows:
The graph of the linear function \(y(t)=a\,t+b\) is a straight line.
The slope \(a\) can be calculated as the quotient of increments: \[a=\frac{{\vartriangle}y}{{\vartriangle}t}=\frac{y_1-y_0}{t_1-t_0}\] Hereafter, the intercept \(b\) can be calculated on the basis of the coordinates of one of the two data points, for example: \[b=y_0-a\cdot t_0\]
A concrete dynamic example may illustrate the method.
The slope \(a\) can be calculated as the quotient of increments: \[a=\frac{{\vartriangle}y}{{\vartriangle}t}=\frac{5-3}{4-1}={{2}\over{3}}\] Hereafter, the vertical intercept \(b\) can be calculated on the basis of the coordinates of one of the two measurement points, for example, on the basis of the point \((1,3)\): \[3={{2}\over{3}}\times 1 +b\qquad\text{that\;is}\qquad b=3-{{2}\over{3}}\times 1={{7}\over{3}}\] The function definition is \[y(t)={{2}\over{3}}t+{{7}\over{3}}\] The vertical intercept is \(f(0)=b={{7}\over{3}}\).

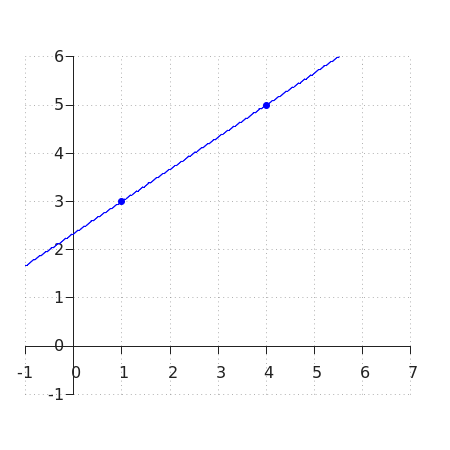

The graph of this function is shown along with the two data points in the figure below.
